58050284 Bolt for BOMAG Compactor and Road Roller Parts

58050284 Bolt for BOMAG

Contact JIAJUE PARTS for a quotation for part number 58050284. Please provide the machine model and serial number so that compatibility and availability can be checked before ordering.

Part identification

• Part number: 58050284
• Part description: Bolt
• Brand: JIAJUE
• Condition: New replacement part
• Catalog reference: 00817521, illustration page 428
• Diagram position: 28

Illustration and fitment notes

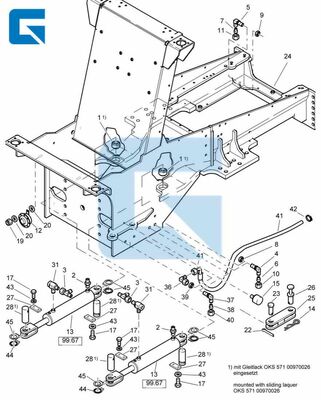

The image is a catalog exploded-view reference with the JIAJUE G logo, not a photograph of the supplied item. It may show an assembly and surrounding components. Only the quoted part is supplied; other illustrated parts are not included unless separately confirmed in the quotation.

Catalog matching supports part identification, but does not establish fitment to every BOMAG machine. Verify the machine model, serial range, part number and diagram position before ordering.

Related diagram references

The following entries are identification references, not a package contents list.

Quotation

Send the part number, required quantity and machine details. Price, stock, delivery time and packaging are subject to quotation confirmation. BOMAG names and part numbers are used for compatibility and identification reference.
