05751097 Flat fuse for BOMAG Compactor and Road Roller Parts

05751097 Flat fuse for BOMAG

Contact JIAJUE PARTS for a quotation for part number 05751097. Please provide the machine model and serial number so that compatibility and availability can be checked before ordering.

Part identification

• Part number: 05751097
• Part description: Flat fuse
• Brand: JIAJUE
• Condition: New replacement part
• Catalog reference: 00817943, illustration page 862
• Diagram position: 13

Illustration and fitment notes

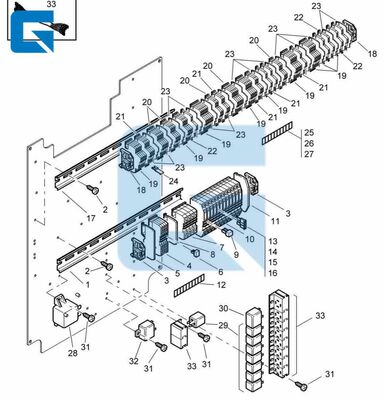

The image is a catalog exploded-view reference with the JIAJUE G logo, not a photograph of the supplied item. It may show an assembly and surrounding components. Only the quoted part is supplied; other illustrated parts are not included unless separately confirmed in the quotation.

This part number was located in another BOMAG catalog. This reference does not confirm fitment to a particular machine model or serial range. Confirm compatibility before ordering.

Related diagram references

The following entries are identification references, not a package contents list.

Quotation

Send the part number, required quantity and machine details. Price, stock, delivery time and packaging are subject to quotation confirmation. BOMAG names and part numbers are used for compatibility and identification reference.
